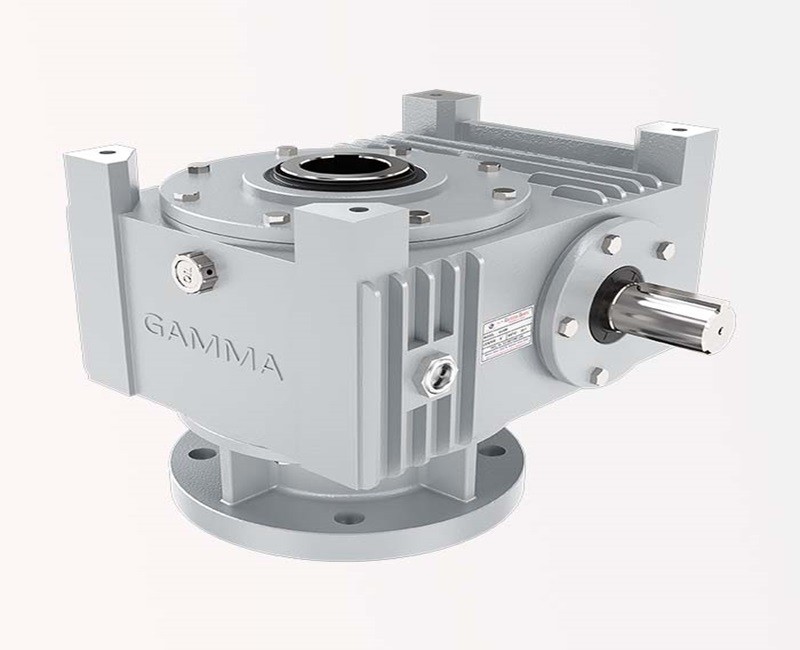

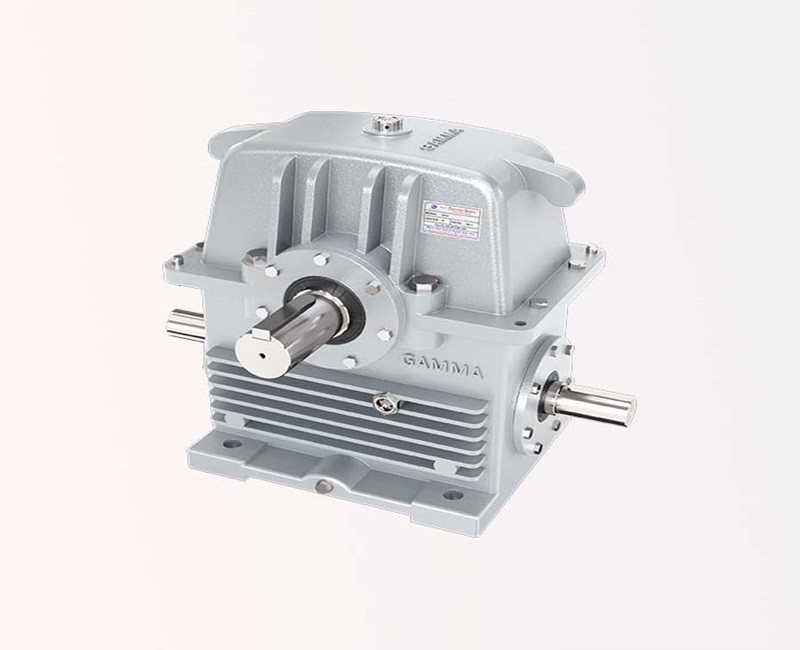

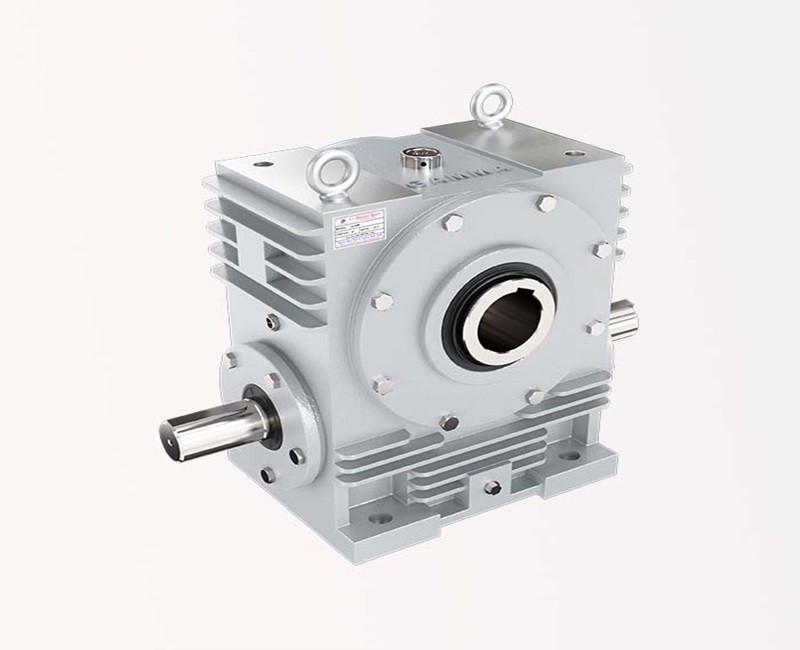

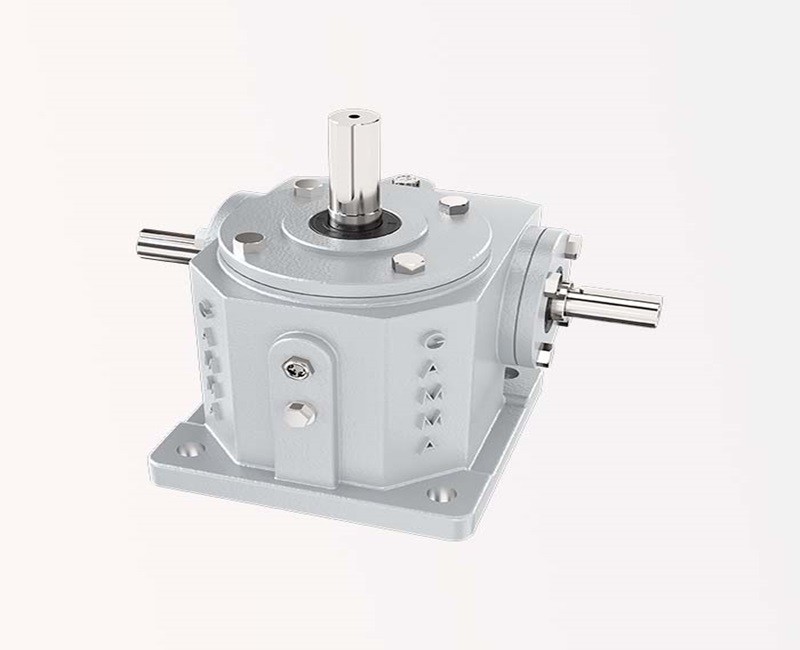

A Worm Reduction Gearbox is a compact and efficient power transmission device used to reduce high motor speed into low speed with high torque output. It operates using a worm (screw) and worm wheel mechanism, providing smooth, silent, and reliable performance in industrial applications.This gearbox is widely used in marble, tile, and construction material machinery, where controlled speed and high torque are required for cutting, lifting, and material handling operations.

Material of Construction

• Worm Shaft: Hardened alloy steel
• Worm Wheel: Phosphor bronze / bronze alloy
• Housing: Cast iron / aluminum alloy
• Bearings: Heavy-duty steel bearings
• Seals: Oil-resistant rubber seals

 Gear Ratio

• Standard ratio: 5:1 to 100:1 (single stage)
• Up to 4900:1 (double reduction systems in industrial use)

 Power Range

• 0.1 kW to 75 kW (depending on model and size)

 Speed & Torque

• Input speed: up to 1500–1800 RPM
• Output speed: low RPM (for controlled cutting operations)
• High torque output for heavy-duty stone processing

 Efficiency

• 50% – 90% (depending on ratio and load)
• High torque multiplication with compact design

 Key Features

• High torque with low speed output
• Compact and space-saving design
• Smooth and silent operation
• Self-locking mechanism (prevents reverse motion)
• High load capacity for heavy materials
• Low vibration during cutting

 Lubrication System

• Oil bath lubrication system
• Heat-resistant industrial gear oil
• Low maintenance design

 Industrial Applications (Marble & Tiles Focus)

• Marble slab cutting machines
• Tile cutting & polishing machines
• Stone grinding & shaping machines
• Conveyor systems in stone industry
• CNC stone processing machines
• Construction material handling systems
