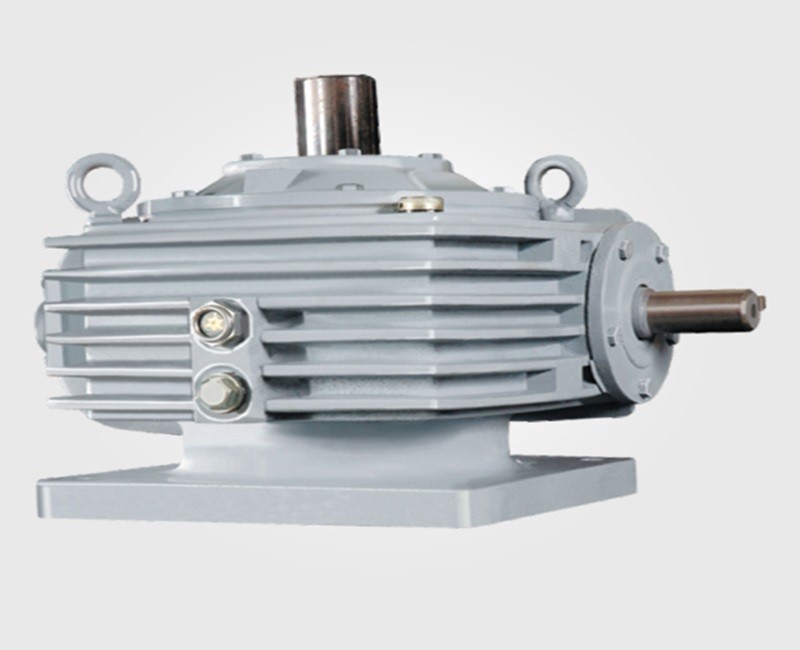

A Vertical Type Worm Gear Unit is a compact and heavy-duty industrial gearbox designed specifically for vertical mounting applications. It uses a worm and worm wheel mechanism to deliver high torque with low speed, ensuring smooth, quiet, and efficient power transmission.In the marble, tile, and construction material industry, it is widely used in machinery that requires vertical power transmission for lifting, mixing, conveying, and processing heavy materials.

Product Type

• Vertical Worm Reduction Gear Unit
• Single stage / Double stage worm gearbox
• Vertical up / vertical down output configuration
• Heavy-duty industrial gear reducer

 Application (Construction Industry)

Used in machinery for:

• Marble cutting & polishing machines
• Tile cutting & sizing machines
• Stone lifting & conveying systems
• Crusher feeding & discharge units
• Cement & construction material handling systems
• Industrial mixers & batching machines

 Gear Ratio

• Single reduction: 5:1 to 70:1
• Double reduction: up to 4900:1
• Designed for high torque and low-speed output

Power Range

• Typically 0.5 HP to 60 HP (depending on model)
• Suitable for continuous industrial duty operations

Output Speed

• Low RPM output for controlled material processing
• Suitable for heavy-load vertical applications

 Construction Material

• Housing: High-grade cast iron (vibration resistant)
• Worm shaft: Hardened alloy steel
• Worm wheel: Phosphor bronze / alloy bronze
• Bearings: Heavy-duty industrial roller bearings
• Seals: Oil & dust resistant sealing system

 Key Features

• High torque output in compact design
• Vertical mounting flexibility
• Smooth & silent operation
• Self-locking feature (prevents reverse motion)
• High load carrying capacity
• Low maintenance design
• Suitable for continuous heavy-duty operation

 Lubrication System

• Oil bath lubrication system
• Heat-resistant industrial gear oil
• Optional cooling fins for heavy loads

 Mounting Options

• Vertical upward output
• Vertical downward output
• Foot mounted / flange mounted types

Industrial Applications (Marble & Tiles Focus)

• Marble slab processing plants
• Tile manufacturing industries
• Stone conveyor systems
• Heavy-duty lifting systems
• Construction material batching units
• Crushing & grinding machinery
