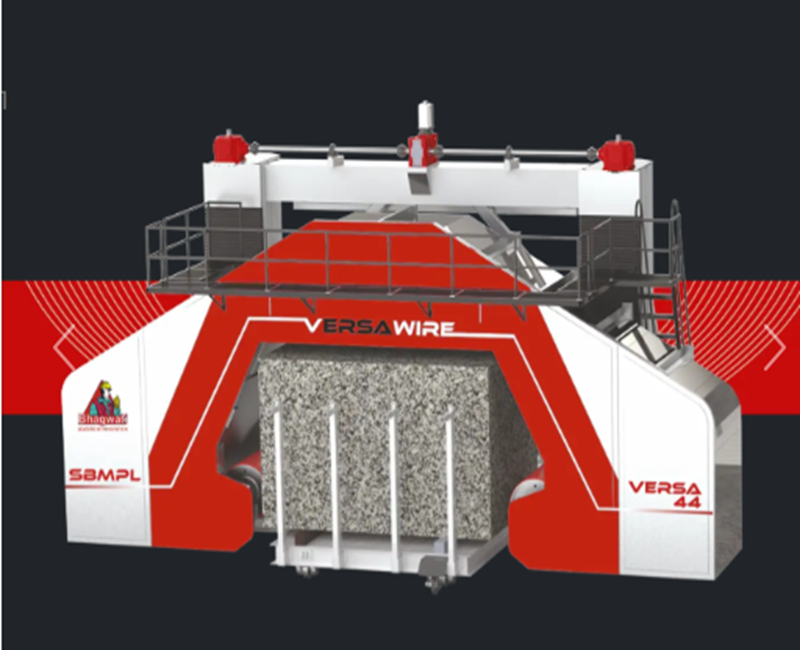

Versawire Multiwire is an advanced multi-wire cutting system designed for high-precision and efficient processing of marble, granite, and other natural stones. Engineered for durability and consistent performance, it enables smooth, accurate slicing with minimal material loss. Ideal for large-scale stone processing units, Versawire Multiwire enhances productivity while maintaining superior surface finish and cutting stability in demanding industrial environments.

General Specifications

• Designed for high-precision block cutting into slabs
• Suitable for marble, granite, and other natural stones
• Multi-wire diamond cutting system for mass production
• Continuous industrial operation for large-scale stone processing units

Cutting System

• Diamond wire diameter: approx. 5.3 mm – 6.3 mm
• Wire speed: 0 – 35 m/s (adjustable based on stone hardness)
• Multiple wire configuration for simultaneous slab cutting
• High-efficiency cutting with reduced material waste

Working Capacity

• Maximum block size: approx. 3.2 – 3.5 m length
• Maximum block height: approx. 2.0 – 2.2 m
• Number of wires: depends on model (typically 8 to 80+ wires)
• Slab thickness capability: 10 mm to 50 mm (adjustable)

Performance Features

• High production output with multiple simultaneous cuts
• Smooth and precise surface finish
• Low kerf loss for maximum stone yield
• Stable cutting with hydraulic tensioning system
• Reduced vibration for better wire life and accuracy

Machine Structure

• Heavy-duty steel frame for vibration-free operation
• Hydraulic or pneumatic wire tensioning system
• Automatic lubrication system for long machine life
• PLC-based control system for easy operation

Power & Utility

• Main motor power: approx. 75 kW – 335 kW (model dependent)
• Water consumption: high-pressure cooling system (varies by setup)
• Industrial-grade electrical control panel (PLC automated)

Key Advantages

• High productivity for marble & granite processing plants
• Cost-effective slab production
• Consistent thickness and surface quality
• Reduced cutting waste and higher yield per block
