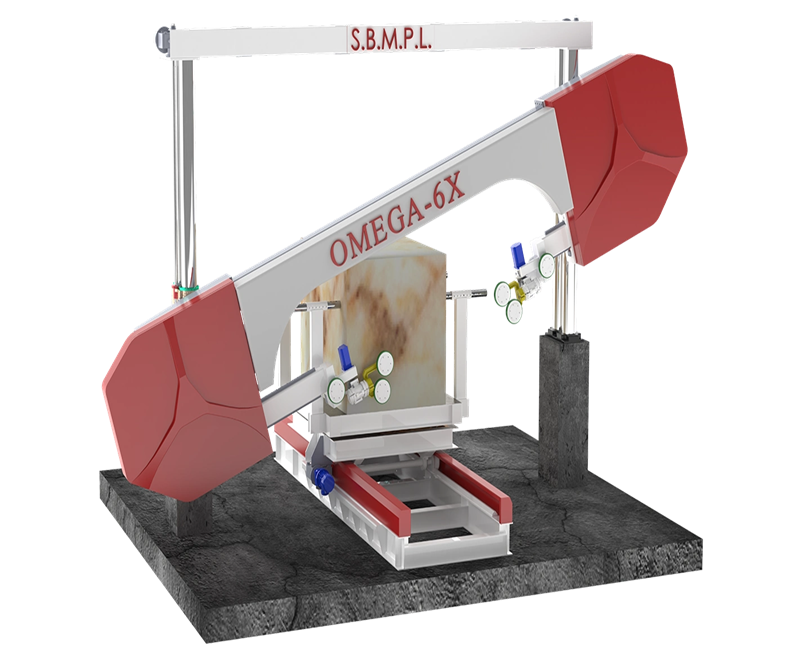

OMEGA 6x Wire Profiling is a high-precision multi-axis wire cutting and profiling system designed for advanced shaping, contouring, and cutting of marble, granite, quartz, and natural stone blocks used in construction material industries.Engineered with 6-axis CNC technology, this machine enables complex 3D profiling, curved cutting, and customized stone shaping with exceptional accuracy and smooth surface finish. It is widely used in stone fabrication plants, quarry operations, and architectural stone design industries.The OMEGA 6x system uses high-strength diamond wire technology to ensure fast cutting speed, reduced material waste, and superior surface quality. Its robust structure and intelligent control system provide stable performance, high productivity, and precise repeatability even under heavy industrial usage.

Machine Type:
6-Axis CNC Diamond Wire Profiling System

Application Materials:

• Marble
• Granite
• Quartz Stone
• Natural Stone Blocks
• Construction Stone Materials

 Machine Configuration

• CNC Controlled Multi-Axis System
• Up to 6–7 Controlled Axes (model dependent)
• Diamond Wire Cutting Technology
• Servo Motor Driven System
• Hydraulic / Pneumatic Wire Tensioning System

 Working Capacity

• Max Block Cutting Size: approx.
  • Height: up to 2000 mm
  • Width: up to 2000–3000 mm
• Wire Speed: 0–35 / 40 m/s (variable)
• Wire Diameter: approx. 6.5 mm – 10.5 mm
• Cutting Precision: High Accuracy CNC Control

 Machine Structure

• Heavy-duty welded steel frame
• Vibration-free rigid construction
• Rotating trolley system (360° control)
• Industrial guide wheel system
• High-stability cutting platform

 Motor & Power

• Main Motor Power: approx. 11–20 kW
• Servo Motors for all axis movement
• Inverter-controlled wire speed system
• Automatic lubrication system

 Cooling System

• Water-cooled diamond wire cutting
• High-pressure water spray system
• Approx. 4–6 m³/h water consumption

 Machine Functions

• 2D & 3D stone profiling
• Complex shape cutting
• Curved surface cutting
• Column, arch & custom design shaping
• Architectural stone profiling

 Key Features

• 6-axis CNC precision control
• High cutting accuracy & smooth finish
• Low material wastage
• Fast production speed
• Heavy-duty industrial performance
• Advanced safety and wire tension system
• Suitable for complex architectural designs
