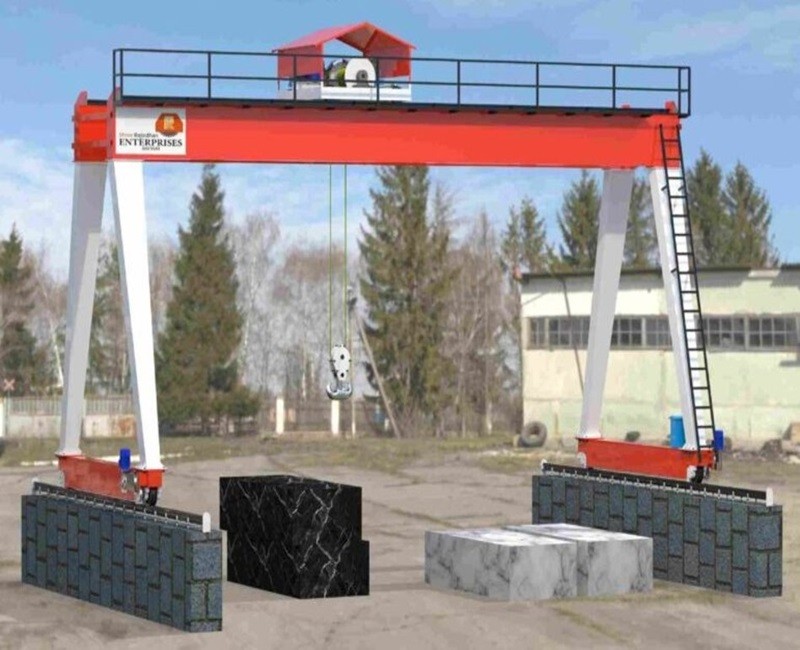

The Gantry Crane is a robust and efficient material handling solution designed for lifting, transporting, and positioning heavy loads in industrial and construction environments. Built with a strong steel structure and supported by stable ground-running legs or wheel-mounted systems, it provides excellent mobility and high load-bearing capacity.This crane is widely used in marble and granite processing units, construction material yards, fabrication workshops, and warehouses for safe and precise handling of heavy blocks, slabs, machinery, and raw materials. It is equipped with a hoisting mechanism and trolley system that ensures smooth horizontal and vertical movement with controlled operation.Designed for durability and long service life, the Gantry Crane delivers reliable performance under continuous heavy-duty usage. Its easy operation, low maintenance, and high efficiency make it an essential equipment for modern industrial lifting applications.

Product Specifications

 Application

• Designed for marble blocks, granite slabs, tiles, and construction materials
• Used in stone processing yards, fabrication units, and loading/unloading areas
• Suitable for heavy-duty outdoor and industrial operations

 Structure & Design

• Heavy-duty steel fabricated gantry frame
• High-strength A-frame or box-type legs
• Anti-corrosion industrial coating for long life
• Designed for stable operation on ground rails or wheels
• Open structure allows easy movement of vehicles underneath

 Capacity & Size

• Lifting capacity: 5 Ton to 80 Ton (customizable)
• Span: 6 m – 35 m (as per requirement)
• Lifting height: 6 m – 18 m (standard range)
• Suitable for marble & granite block handling up to 20–30 tons commonly

 Hoisting System

• Electric wire rope hoist / chain hoist
• Double or single girder configuration available
• Smooth vertical lifting with controlled speed operation
• Heavy-duty hook block with safety latch

 Movement System

• Long travel: rail-mounted or wheel-mounted system
• Cross travel trolley for horizontal movement
• Smooth gear motor drive system
• Variable speed control for precision handling

 Power & Performance

• Electric motor operated system
• High torque industrial-grade motors
• Efficient energy consumption for continuous operation
• Designed for heavy-duty 24/7 working conditions

 Safety Features

• Overload protection system
• Limit switches for safe lifting height
• Emergency stop system
• Anti-sway mechanism for load stability
• Brake system for controlled movement
