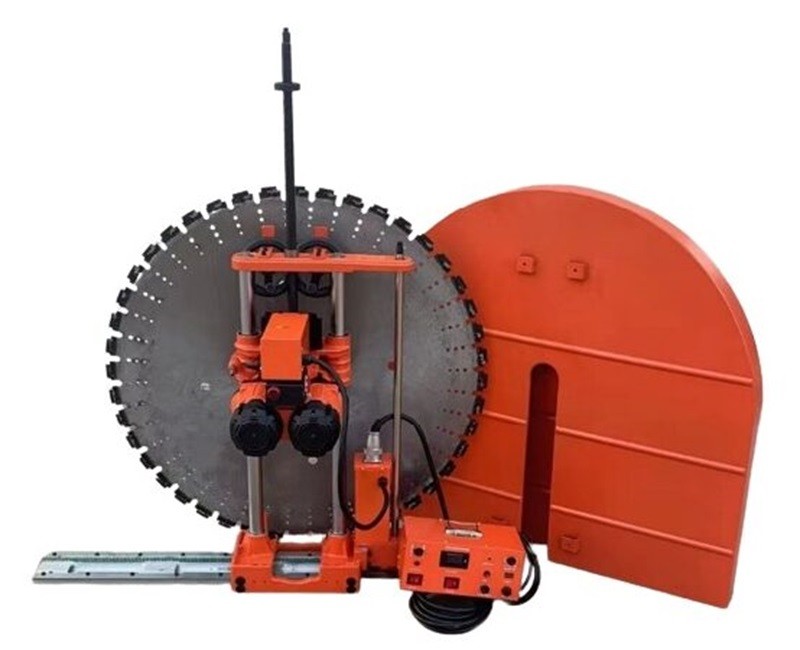

The Electric Wall Saw Machine is a high-performance and precision cutting equipment designed for cutting reinforced concrete walls, marble, granite, tiles, brick, and other construction materials. Powered by a robust electric motor, it ensures smooth, efficient, and vibration-free cutting for demanding construction and demolition applications.This machine is built with a rail-mounted system that provides stability and accurate straight-line cutting, even on thick and reinforced structures. The diamond blade technology delivers deep, clean, and precise cuts, improving productivity and finishing quality on site.With its user-friendly operation, adjustable cutting depth, and strong build quality, the Electric Wall Saw Machine is ideal for structural modifications such as door openings, window cutting, bridge work, and renovation projects.

 Technical Specifications

• Power Source: Electric motor (high efficiency AC motor)
• Motor Power: 6 kW – 15 kW (approx. depending on model)
• Voltage: 220V / 380V (single & three phase options)
• Frequency: 50 Hz
• Blade Diameter: 800 mm – 1200 mm
• Maximum Cutting Depth: 320 mm – 500 mm
• Blade Type: Diamond segmented blade
• Rotation Speed: ~350 – 400 RPM (model dependent)
• Cooling System: Water-cooled wet cutting system
• Machine Type: Rail-mounted wall cutting system
• Control System: Manual / semi-automatic / remote control (optional)

 Material Compatibility

• Reinforced concrete walls
• Marble & granite slabs
• Ceramic & vitrified tiles
• Brick & masonry walls
• Stone and construction blocks

Key Features

• High-power electric motor for stable performance
• Rail-guided system for straight and precise cutting
• Diamond blade for deep, clean cutting
• Low vibration and smooth operation
• Water cooling system for dust control and blade life
• High efficiency for heavy-duty cutting jobs
• Suitable for vertical and horizontal cutting

Applications

• Door & window opening cutting
• Building renovation and demolition
• Concrete wall cutting
• Bridge and structural modification
• Marble and stone cutting work
