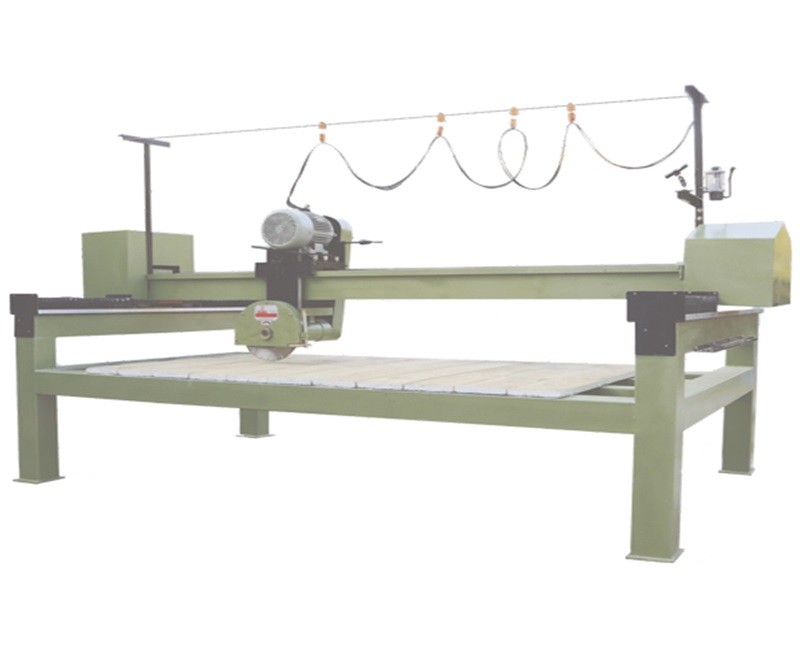

Edge Cutting Machines are high-precision stone processing machines designed for cutting, trimming, and finishing the edges of marble, granite, and natural stone slabs. These machines ensure accurate straight cuts, beveling, and smooth edge finishing to enhance the quality and appearance of tiles and slabs used in construction and interior applications.Built with a strong industrial frame and equipped with diamond-tipped blades, Edge Cutting Machines deliver stable, vibration-free operation and consistent performance. They can be operated manually, semi-automatically, or with PLC control systems depending on production requirements.Widely used in stone processing units, these machines improve productivity, reduce material waste, and ensure uniform edge quality for flooring, wall cladding, countertops, and architectural stone products.

Technical Specifications

• Machine Type: Stone Edge Cutting / Trimming Machine
• Application: Marble, Granite, Sandstone, Limestone & Engineered Stones
• Blade Diameter: 200 mm – 600 mm (depends on model)
• Max Cutting Thickness: 40 mm – 150 mm
• Max Cutting Length: 1200 mm – 3200 mm
• Max Cutting Width: 600 mm – 1200 mm
• Main Motor Power: 5.5 kW – 15 kW
• Head Movement: Manual / Motorized / Semi-Automatic
• Table Type: Heavy-duty sliding / fixed steel table
• Frame Material: Cast iron / Heavy-duty welded steel structure
• Cooling System: Water-cooled cutting system
• Cutting Angle: 0° – 45° (tilting head optional)
• Control System: Manual / Semi-automatic / PLC (optional)
• Operation Type: Hydraulic / Electric feed system

 Key Features

• High precision edge cutting and trimming
• Strong and rigid machine body for vibration-free operation
• Smooth sliding table for accurate alignment
• Adjustable cutting head for straight and angled cuts
• Long blade life with water cooling system
• Suitable for continuous industrial production

 Applications

• Marble slab edge cutting
• Granite tile finishing
• Stone slab trimming and sizing
• Construction material production units
• Countertops, flooring & wall cladding preparation
