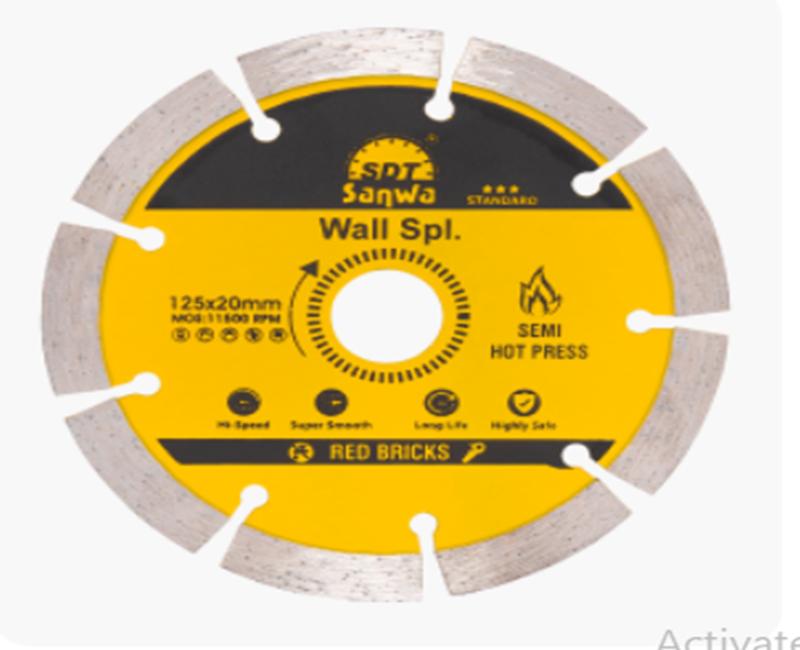

Diamond Saw Blades are high-quality cutting tools engineered for precision cutting of hard and abrasive materials. Manufactured using premium industrial-grade diamond segments bonded to a high-strength steel core, these blades deliver exceptional cutting performance, durability, and reliability in demanding applications.Designed for cutting granite, marble, tiles, concrete, sandstone, limestone, and other natural stones, Diamond Saw Blades ensure smooth, accurate, and chip-free cutting results. Their advanced segment design reduces heat buildup and friction, allowing faster cutting speeds and extended blade life.Widely used in construction, stone processing, and fabrication industries, Diamond Saw Blades provide superior efficiency, consistent performance, and cost-effective operation for professional cutting needs.

General Application

• Material Cutting: Marble, Granite, Tiles, Ceramic, Porcelain, Quartz, Limestone, Sandstone, Kota Stone
• Blade Type: Circular Diamond Segmented / Continuous Rim / Turbo Blade
• Usage: Wet Cutting & Dry Cutting (wet cutting recommended for long life)
• Industry Use: Construction, Stone Processing, Flooring, Fabrication, Masonry Work
• Cut Finish: Smooth, precise, and chip-free cutting

Material & Construction

• Blade Core: High-strength alloy steel
• Cutting Edge: Industrial-grade synthetic diamond segments
• Bond Type: Metal bond (hot press / sintered technology)
• Segment Types: Continuous rim (tiles), segmented (granite), turbo (multi-material)
• Welding Type: Laser welded or high-frequency brazed

Technical Parameters

• Diameter Range: 100 mm to 1200 mm
• Core Thickness: 1.8 mm – 5.5 mm (based on size)
• Segment Height: 7 mm – 15 mm
• Arbor Size: 20 mm / 22.23 mm / 25.4 mm / custom options
• Number of Segments: 10 to 80+ (depends on blade size)
• Max RPM: 6,000 – 13,000 RPM (varies by diameter)

Performance Features

• High cutting speed and efficiency
• Long service life with reduced wear
• Smooth cutting with minimal chipping
• Heat resistance and low vibration design
• Suitable for both soft and hard stone materials

Compatible Machines

• Bridge saw machines
• Marble cutters
• Tile cutting machines
• Angle grinders (small diameter blades)
• Stone fabrication machines
