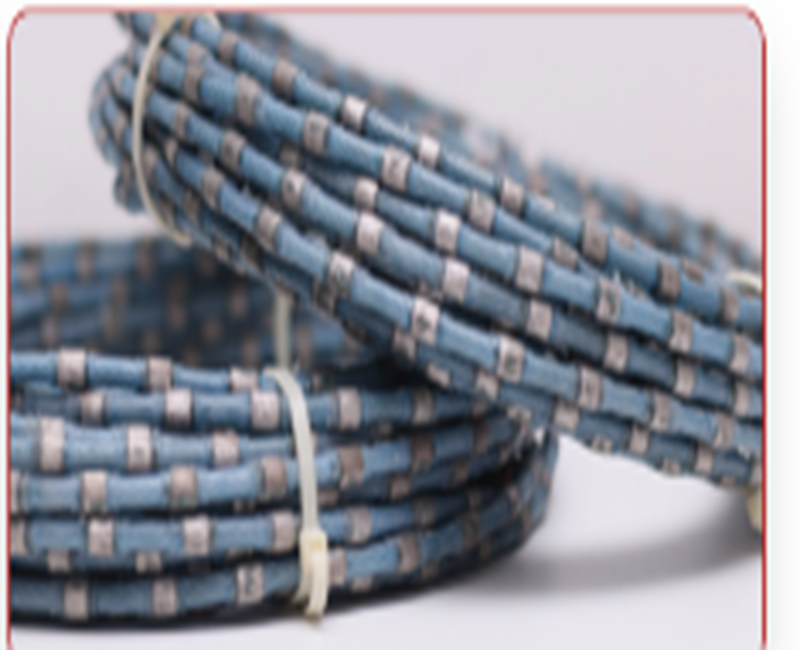

Concrete Wire Saw is an advanced diamond cutting system specially designed for precise cutting of reinforced concrete, thick concrete walls, bridges, beams, columns, and heavy construction structures. It uses a high-strength steel cable fitted with diamond beads that enable smooth, vibration-free cutting even in heavily reinforced materials.Engineered for demanding construction and demolition applications, the Concrete Wire Saw provides excellent cutting accuracy, reduced noise, and minimal structural stress compared to conventional cutting methods. The diamond wire technology ensures fast cutting speed, low material damage, and improved operator safety.Concrete Wire Saw systems are widely used in construction projects, controlled demolition, renovation work, infrastructure development, and industrial concrete processing. With efficient water cooling and automatic tension control, the tool delivers long service life, reliable performance, and high productivity in continuous cutting operations.

Product Specifications

• Product Name: Concrete Wire Saw
• Application: Concrete cutting, marble & tile processing, stone quarrying, construction demolition
• Wire Type: Diamond Beaded Wire
• Wire Diameter: 8.5 mm – 11.5 mm (custom sizes available)
• Bead Diameter: 10 mm / 10.5 mm / 11 mm
• Bead Spacing: 25 mm – 40 mm
• Bead Material: Sintered Diamond Beads
• Wire Material: High-tensile steel cable
• Cutting Method: Wet cutting with water cooling
• Machine Compatibility: Stationary wire saw machines & portable wire saw systems
• Cutting Speed: High efficiency continuous cutting
• Operating Direction: Multi-directional cutting capability
• Cooling System: Water cooling required
• Surface Finish: Smooth and accurate cutting surface
• Usage Materials: Reinforced concrete, marble, granite, tiles, stone blocks, bridge structures
• Durability: Long service life with high wear resistance
• Safety Feature: Low vibration and reduced noise operation
