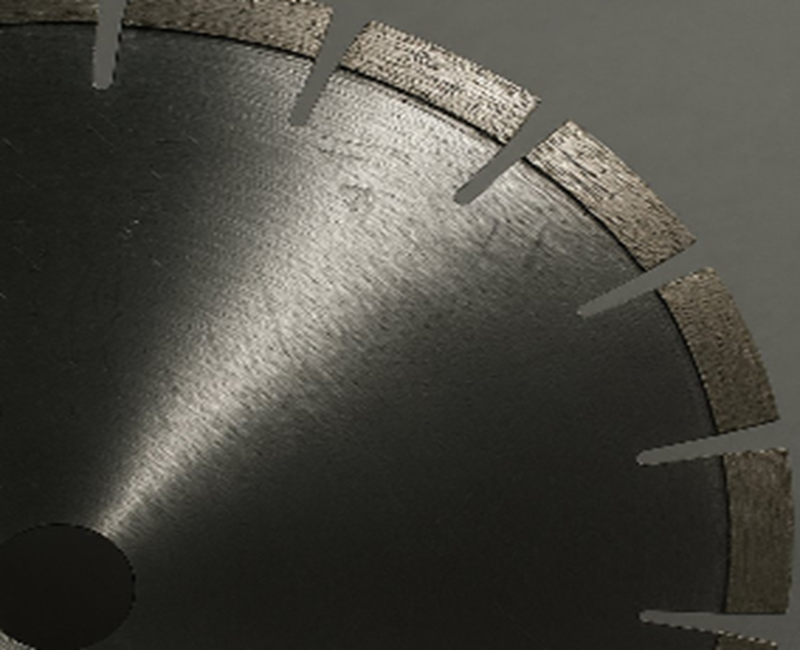

The Circular Saw Blade for Granite and Sandstone is a heavy-duty diamond cutting tool designed for fast, precise, and efficient cutting of natural stone materials. Manufactured using high-grade steel core and premium industrial diamond segments, it delivers excellent cutting performance, durability, and long service life in demanding construction and stone processing applications.This blade is specially engineered for cutting hard materials such as granite, sandstone, marble, quartz, and other natural stones. Its advanced segment design ensures smooth cutting with reduced chipping, stable operation, and high resistance to wear and heat during continuous use.Suitable for both wet and dry cutting applications, it provides flexibility for various construction and fabrication needs. The blade is widely used in stone processing units, construction sites, and fabrication workshops for accurate and clean cutting results.

General Information

• Product Type: Diamond Circular Saw Blade
• Application: Granite, Sandstone, Marble, Natural Stone, Ceramic Tiles, Construction Materials
• Usage: Cutting, trimming, shaping stone blocks and tiles
• Cutting Method: Wet cutting (recommended) / Dry cutting (select models)

 Construction Details

• Core Material: High-grade alloy steel body
• Cutting Segments: Industrial diamond-tipped segments
• Bond Type: Metal bond (hot press / sintered)
• Segment Type: Turbo / Segmented / Continuous rim (based on usage)
• Cooling Slots: Laser-cut expansion slots for heat reduction and stability

 Size & Dimensions

• Blade Diameter Range: 4 inch (105 mm) to 48 inch (1200 mm)
• Standard Thickness: 2.2 mm – 5.5 mm (based on diameter)
• Segment Height: 8 mm – 15 mm
• Arbor Size: 20 mm / 22.23 mm / 25.4 mm (varies by machine)
• Cutting Depth: Depends on blade diameter (up to heavy slab cutting)

 Performance Specifications

• Max RPM: 2,800 – 6,500 RPM (depending on size)
• Cutting Speed: High-speed cutting with smooth finish
• Operating Type: Hand-held machines, stone cutters, bridge saws
• Cooling Requirement: Water cooling recommended for longer life
• Cut Quality: Smooth finish with minimal chipping

 Material Compatibility

• Granite
• Sandstone
• Marble
• Quartz stone
• Concrete blocks
• Ceramic & vitrified tiles

 Key Features

• High cutting efficiency for hard stone materials
• Strong steel core for stability and safety
• Diamond segments for long-lasting performance
• Smooth and precise cutting edges
• Heat and wear resistant design
• Suitable for professional stone cutting applications
