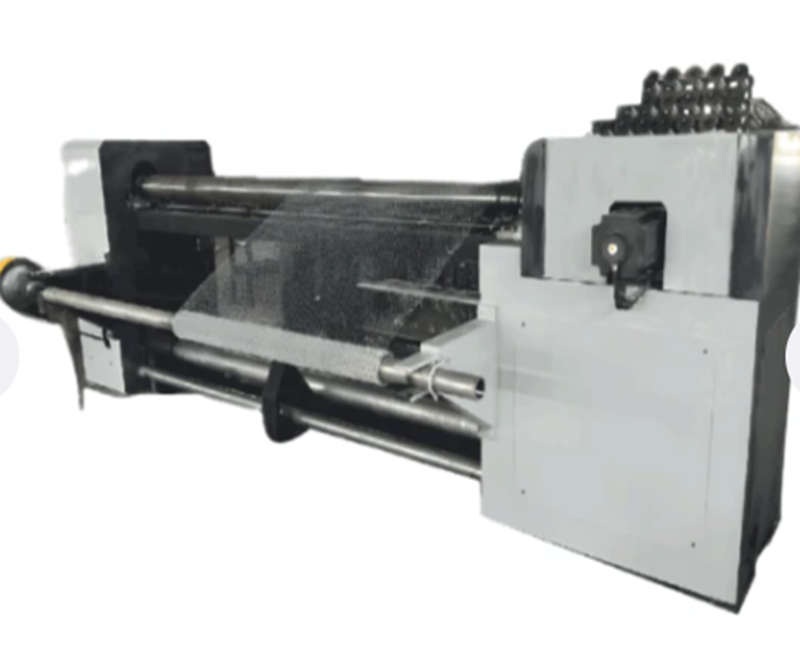

The Automatic Hexagonal Wire Mesh Machine is an advanced industrial solution designed for the continuous and efficient production of hexagonal wire mesh. It automatically feeds, twists, and weaves galvanized or mild steel wire into uniform hexagonal patterns with high precision and stability. This machine is widely used for manufacturing chicken mesh, poultry fencing, gabion mesh, and protective enclosures required in agriculture, construction, and infrastructure projects.Built with a robust frame and high-performance automation system, the machine ensures smooth operation, low maintenance, and long service life. It supports various mesh sizes and wire diameters, allowing flexibility for different production requirements. The automatic control system reduces labor dependency while increasing production speed and consistency.Ideal for industrial-scale manufacturing, the Automatic Hexagonal Wire Mesh Machine delivers strong, durable, and accurately formed mesh rolls suitable for fencing, erosion control, and safety applications.

General Specifications

• Machine Type: Fully Automatic Hexagonal Wire Netting Machine
• Raw Material: Galvanized iron wire / PVC coated wire / low carbon steel wire
• Product Output: Hexagonal wire mesh (Chicken mesh / Poultry netting / Gabion mesh)
• Operation System: PLC / CNC automatic control system
• Operator Requirement: 1 operator

 Mesh Specifications

• Mesh Shape: Hexagonal (Double twisted or single twisted)
• Mesh Opening Size:
  • 1/2” (12–15 mm)
  • 3/4” (20 mm)
  • 1” (25 mm)
  • 1.5” – 3” (custom sizes available)
• Mesh Width: 1.2 m – 4.5 m (standard models: 2.6 m / 3.3 m / 4.0 m)
• Number of Twists: 3 – 6 twists (depending on model)

 Wire Specifications

• Wire Diameter Range: 0.4 mm – 2.5 mm
• Wire Type Compatibility:
  • Galvanized wire
  • PVC coated wire
  • Mild steel wire
• Wire Feeding System: Automatic multi-wire feeding system with tension control

 Performance & Capacity

• Production Speed: 60 – 180 meters/hour (depending on mesh size)
• Output Mode: Continuous roll production
• Efficiency: High-speed automated weaving with minimal downtime
• Operation Type: Forward and reverse twisting system for strong mesh bonding

 Power & Electrical

• Voltage: 220V / 380V / 415V / 440V (customizable)
• Power Consumption: 2.2 kW – 16 kW (model dependent)
• Control System: PLC with touch screen interface
• Safety System: Emergency stop + wire break detection alarm

 Machine Structure

• Frame Material: Heavy-duty welded steel body
• Drive System: Servo motor / gearbox transmission
• Lubrication System: Automatic oiling system
• Noise Level: Low noise operation (industrial standard)

 Applications

• Chicken mesh / poultry fencing
• Agricultural fencing
• Gabion boxes & retaining walls
• Slope protection & erosion control
• Construction reinforcement mesh
• Industrial protective barriers

 Key Features

• Fully automatic production line
• High precision hexagonal weaving
• Strong anti-loosening twisted structure
• Low manpower requirement
• Stable long-term industrial operation
• Custom mesh size and width options available
